Fermio EM

Fermio EM

Low power and small dimensions, ideal for IoT applications.

Fermio EM

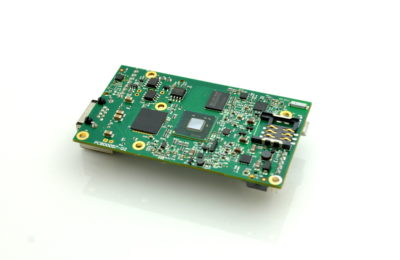

Fermio-EM is a single-board computer with a credit card size based on Intel Quark technology. Intel Quark processors are designed for devices which main goals are low power consumption and small size. The Fermio-EM energy consumption is only 2.5 W!
Fermio EM

The Intel Quark series processors are designed to develop innovative solutions for computer markets, Internet of Things and the Wearables category. The Intel Quark processor, thanks to perfectly designed environment, gives the opportunity to build a device that can be used in many industry sectors. A device with appropriate shielding and power supply can be an end product itself. Despite its small size, the Fermio-EM has many communication ports and up to 8 GB of memory, which can be extended with help of a micro SD card. Fermio-EM provides a full BOM (Bill of Materials), which is very useful when certifying devices, and Intel provides production of Quark processors until 07.2022.

Technical details Fermio EM

Processor
Intel Quark SoC X1000 400 MHz 32-bit x86
Memory
512 MB DDR3 RAM
Internal memory
2 GB eMMc + microSD slot (optional)
Comunication ports
2x port 10/100 Mb Ethernet RJ45, USB 2.0 (high-speed client), mini-PCI Express, 20-pin connector with USB 2.0 host, I2C, SPI, GPIO, UART, RS-485, 1wire,
Wireless comunication
Bluetooth Low Energy
Power supply
3,5 - 17 V DC
Power consumption
average 2,5 W
Dimensions
50mm x 86mm
Operating system
Linux Yocto
Others
Accelerometer, RTC (with power supply on the board), connector for OLED screen
