V3501 MOBILE SET
It enables all 3501 radio functions to be used what increases the operational range of the team or platoon. You can easily create a mobile or stationary set. It is enough to disconnect the antenna and the power supply from the radio 3501, place it in the adapter and connect the control cable and the vehicle antenna.

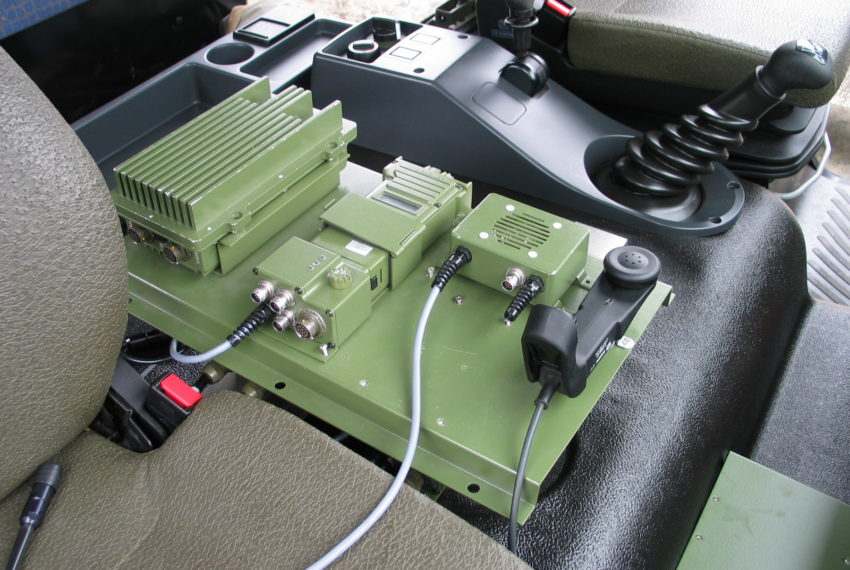

For the operation of the handheld radio R3501 in the vehicle, mobile set V3501 is used. It consists of the following devices: Transceiver unit 3521 of the radio R3501, vehicle adapter 0526, active speaker 0529 and car antenna. Thanks to the adapter, the radio can be easily mounted in the vehicle. With its help, the radio is powered from a 12V or 24V on-board network. This kit can optionally be equipped with 0525 power amplifier and 05213 console. The amplifier enables the signal to be amplified up to 50W (0.3W, 1W, 3W, 5W, 20W, 50W – depending on configuration). This makes it possible to create a high-power V3501 mobile set that maintains communication over a large area. It enables all R3501 radio functions to be used what increases the operational range of the team or platoon. You can easily create a mobile or stationary set. It is enough to disconnect the antenna and the power supply from the radio R3501, place it in the adapter and connect the control cable and the vehicle antenna. All these operations take no more than a minute.
If there is a high level of noise in the assembly area and it is impossible to use the built-in radio speaker, it is possible to extend the set and install the external active speaker. Other accessories may also be used, e.g. an external handset or headset. Mobile broadband antenna and GPS antenna are available, as well. Installation kits content depends on the type of the vehicle. The console 05213 is designed for remote operation of the vehicle set. It controls the car adapter and power amplifier, as well. It allows, among the others: speech and data transmission, reception and transmission of status messages, operation with selective calling, data reading from the GPS receiver installed in the transceiver unit. The console is equipped with an LCD display showing the current parameters of the adapter or the transceiver unit.
